產品介紹

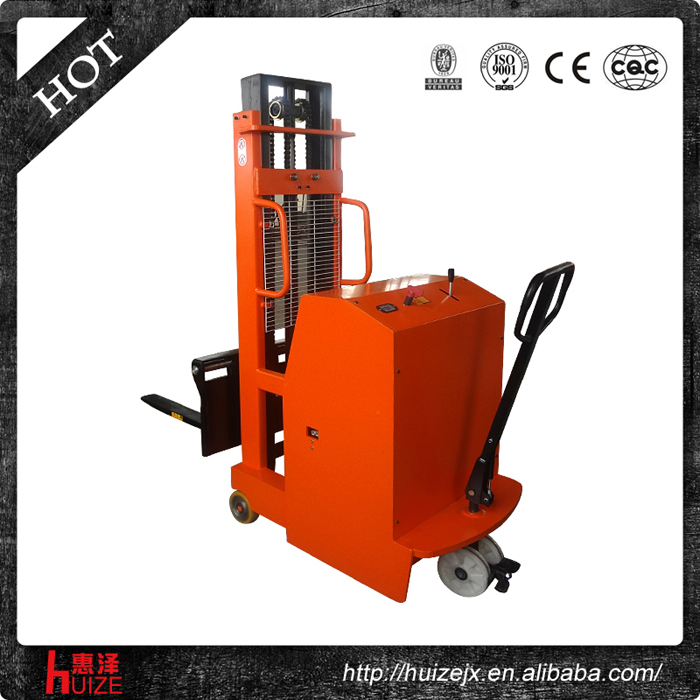

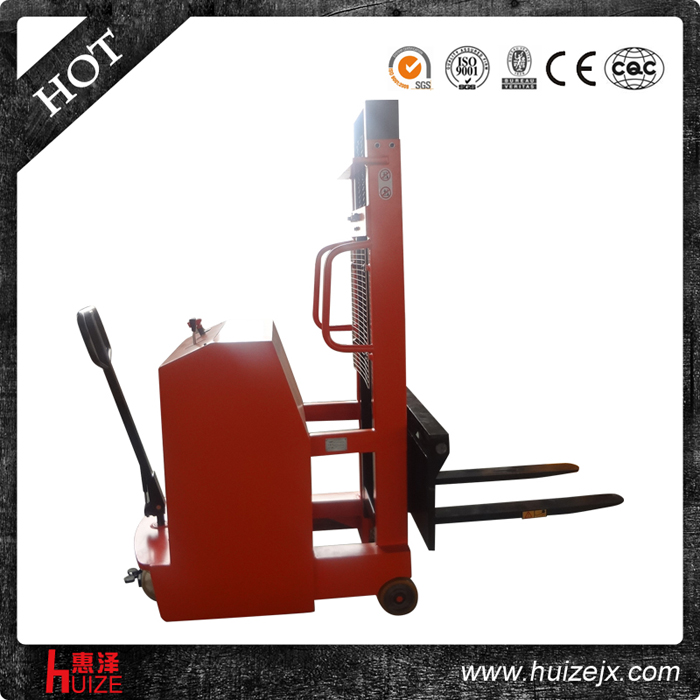

1.半電動配重式堆高車無底腿，適用于單面托盤和雙面托盤。

2.電動升降，減少工人勞動強度，人力手推行走，省時省工，操作簡便;

3.環保高效，性價比高，應用于高架貨物、托盤的移動和堆垛；

4.工作原理是在升降時通過操縱升降桿控制泵站工作，直接通過油缸帶動內外門架和滑架相對運動，使貨叉上升和下降；

5.在狹窄通道、樓面、高架倉庫等工作環境，更能充分體現出其卓越的靈活、寧靜和環保性能。

6.整機按照JB/T3341-2005標準設計。

1.Semi electric counterbalanced stacker without leg is suitable for single-deck and double-deck pallets.

2.Electric lift, manual walkie, reducing worker’s labor intensity, time-saving and lador-saving, easy operation.

3.It is environmental friendly and efficient, cost effective, applible to move and stack cargo, pallets in high rack.

4.The working principle is controlling pump station work by manipulating the lifting lever when lifting.

The carriage of mast is driven by cylinder directly to make fork up and down.

5.It will fully reflect its superior flexibility, silence, environmental performance in narrow aisle, floor, high rack storage and so on.

6.The whole design according to JB/T3341-2005 standard.

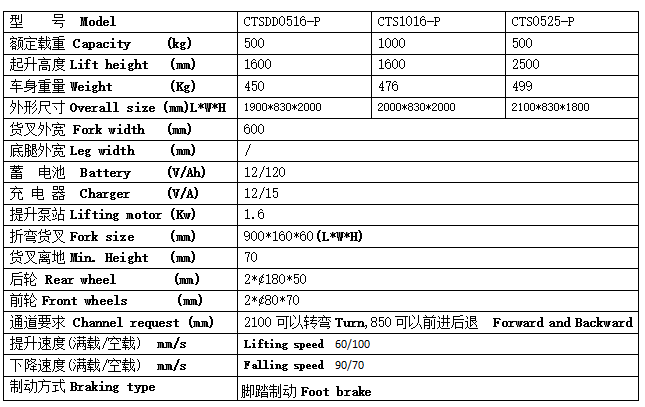

產品參數
